Description

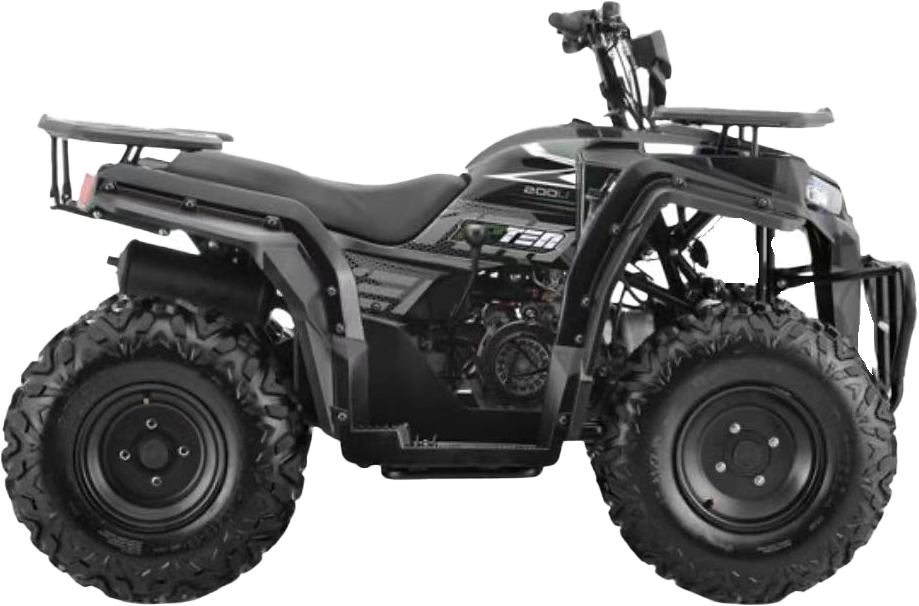

The new 10TEN 200U is a multi purpose small capacity ATV designed for a whole range of users.
Whether you need a smaller sized Utility machine to look after your small holding, or something fun for hacking around your land, then the 200U is the quad for you. It is fitted with the world renowned GY6 engine that is one of the most widely used engines in small capacity ATVs.
The U200 comes as standard with a range of key features including tow hitch, front & rear racks, front & rear lights, pull start and oversized front bumper.
| Bore & Stroke | 62.5 x 57.8mm |
| Carburettor | JINGKE PD24J |
| Chain | 17T-37T 530 |
| Compression Ratio | 10.0:1 |
| Dimensions L / W / H | 1710 x 975 x 1030mm |
| Dry Weight Mass | 155kg |
| Engine Type | GY6 180cc |
| Front Brakes | Disc |
| Front Suspension | 310mm |
| Front Tyre Size | 10" AT23x7-10 |
| Front Wheel Size | Steel 10x5.5AT 4/110 90 |
| Fuel Tank Capacity | 5.5L |
| Gear Selection | Auto, R-N-F |
| Power | 7.35kw 7500rpm |
| Rear Brakes | Disc |
| Rear Suspension | 210mm |
| Rear Tyre Size | 10" AT22x10-10 |
| Rear Wheel Size | Steel 10x8.0AT 4/110 90 |
