Description

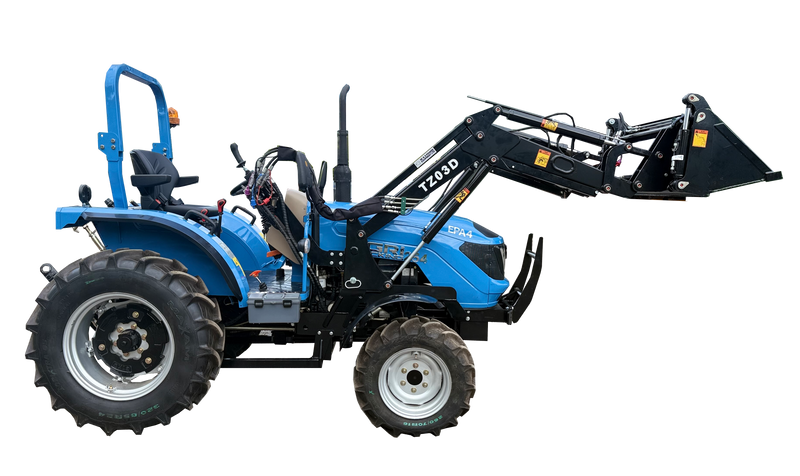

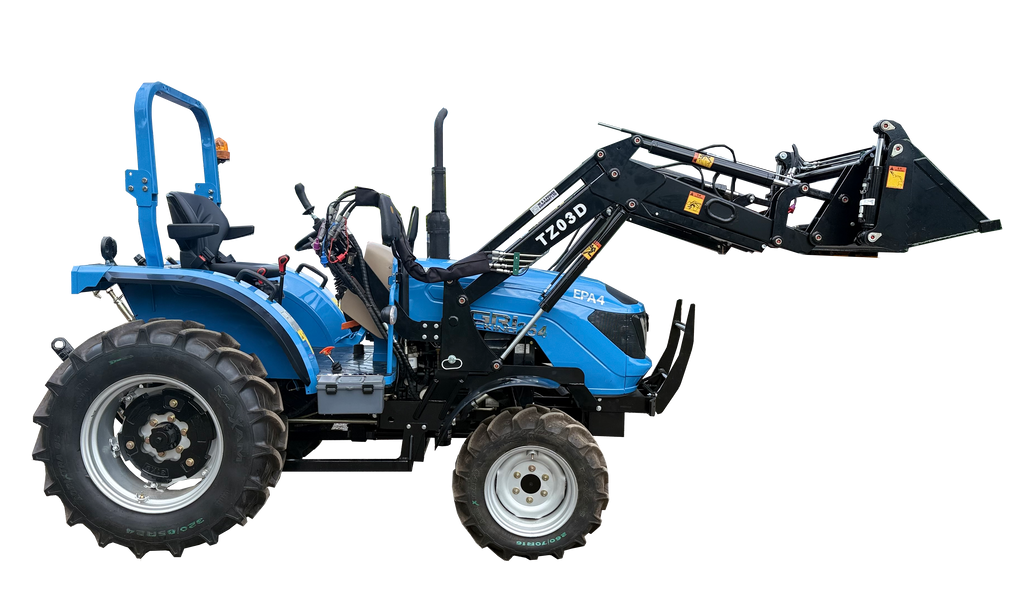

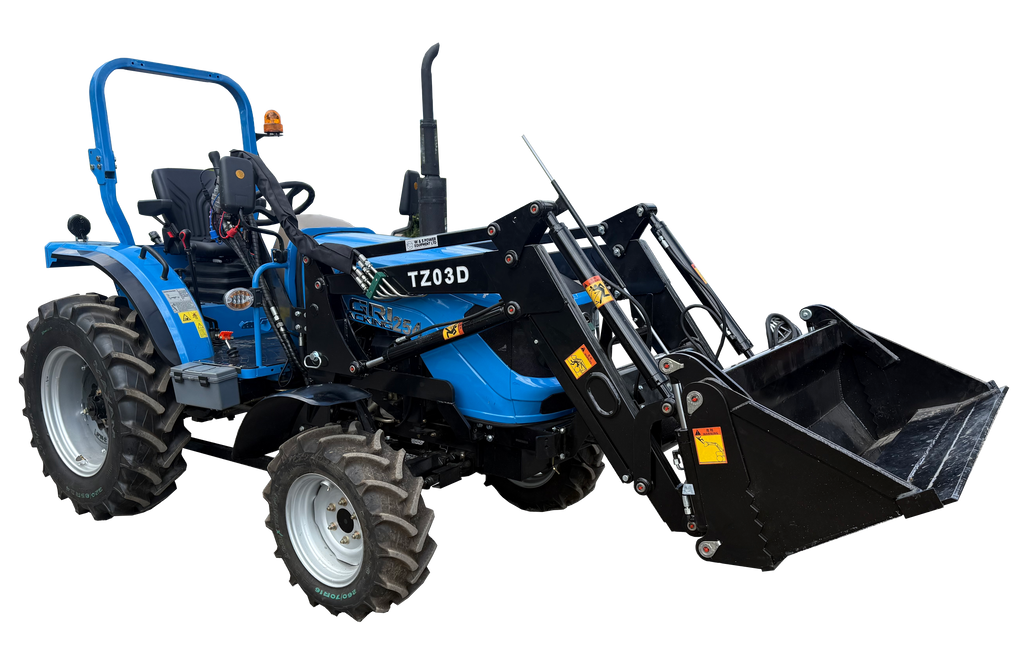

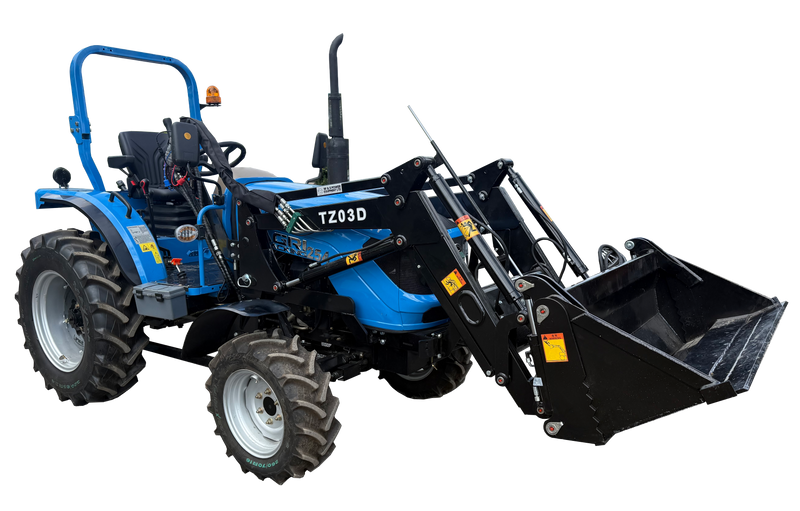

Model Agri Tracking 254 Perkins Diesel Engine
- FINANCE PACKAGES TO SUIT ALL CUSTOMERS
- 25HP PERKINS 4-CYL DIESEL ENGINE
- ALL WHEEL DRIVE
- TWIN HYDRAULIC OUTPUTS8797
- REAR HYDRAULIC SPOOL VALVES
- 750KG HYDRAULIC LIFT CAPACITY
- HEAVY DUTY UPGRADED FRONT AXLE
- 8F + 8R Synchroniser gearbox with 9" double acting clutch
- FROM ONLY £8583 + VAT (AGRICULTURAL TYRES)
- Overall Dimensions L x W x H (mm). 3180 x 1560 x 2600
- Wheel Track Front 1300/1400/1450
- Wheel Track Rear 1300 - 1700
- Wheel Base (mm) 1800
- Ground Clearance (mm) 308
- Rated Traction Force (N). 9800
- Construction Mass. (kg) 1400
- Theoretical Speed (km/h) Forward 2.46 - 32.73
- Rear. 2.15 - 28.69
- Engine Perkins 4 Cylinder vertical water cooled 4 stroke cycle
- Rated power (kw/hp). 18.4 / 25
- Rated speed. (RPM). 2400
- Bore x Stroke (mm). 90 x 100
- Total Displacement (L). 2
- Clutch. 9” dual stage
- Gear Box 8 + 8
Tyre
Front 260/70R16
Rear 320/85R24
Steering Gear
Full hydraulic steering
Brake
Disk Type
Hydraulic System
Lifting Capacity at 610mm Behind Lift Point (N) 7800
3 Point Suspension Category:I
P.T.O Shaft Rotating Speed (rpm) 540/720
Spline Size 6 - 35 Rectangular Spline
OPTIONAL EQUIPMENT
- TURF TYRES
- INDUSTRIAL TYRES
- GALAXY PRO TYRES
- WIDER AGRICULTURAL TYRES
- FRONT WEIGHT KIT
- FRONT LOADER
- LOADER 3RD FUNCTION KIT
- 4 in 1 BUCKET
- 3 in 1 GRAB (CLAMP) BUCKET
- BALE SPIKE
- MUCK GRAB
- PALLET FORKS (600 KGS) RATED
- SNOW PLOUGH
- 3 POINT LINK SALT SPREADER
- BALAST BOX (REAR 3 POINT LINK)
- GROUND LEVELING (IDEAL EQUINE FRIEND)
- FULL RANGE WSPower Attachments and Flail Mowers
